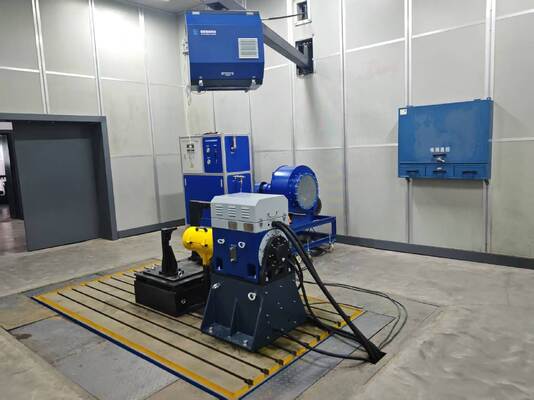

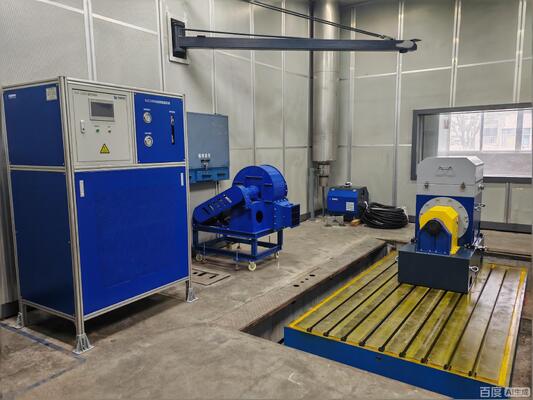

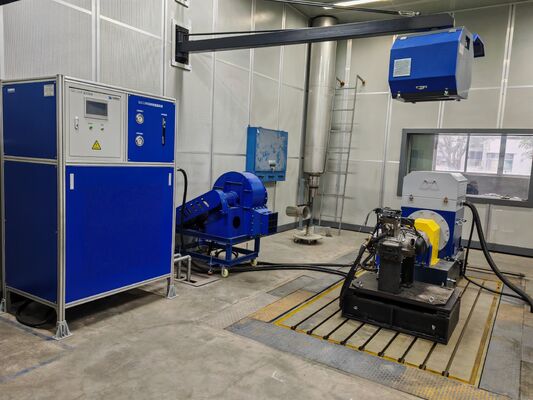

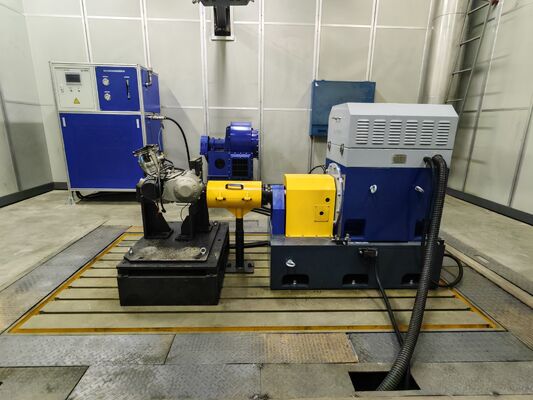

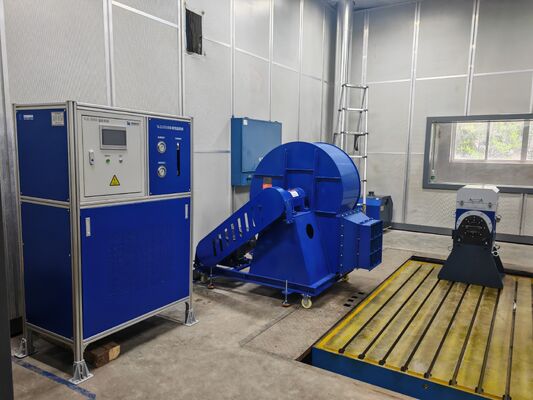

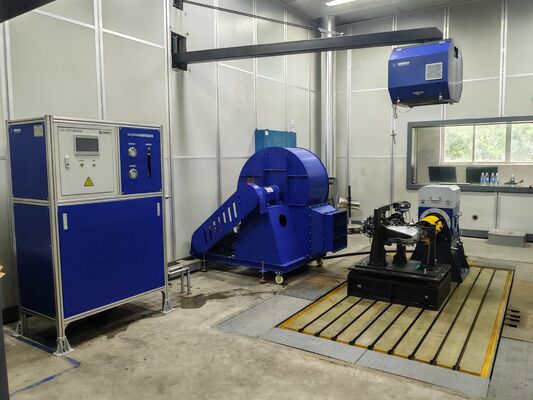

SSCG60-3000/10000 60kW Medium and heavy-duty Unmanned Aerial Vehicle (UAV) Engine Test Dynamometer Bench System

SSCG60-3000/10000 60kW Medium and heavy-duty Unmanned Aerial Vehicle (UAV) Engine Test Dynamometer Bench System

1. SSCG60-3000/10000 60kW Medium and heavy-duty Unmanned Aerial Vehicle (UAV) Engine Test Dynamometer Bench System Component Description

The SSCG60-3000/10000 60kW unmanned aerial vehicle engine test dynamometer bench system is designed for the power systems of medium and heavy-duty logistics, inspection, and forest fire prevention unmanned aerial vehicles. The system has a stronger power and torque carrying capacity and can stably complete performance testing, durability assessment and control strategy verification of 60kW-class piston, turboshaft/turboprop engines.

2. SSCG60-3000/10000 60kW Electric Dynamometer Core Technical Parameters

3. SSCG60-3000/10000 60kW Medium and heavy-duty Unmanned Aerial Vehicle (UAV) Engine Test Dynamometer Bench System Core Strengths

1) Precision testing capability for medium and high power

A 60kW-class wide-range test platform with excellent torque and power linearity meets the full-load and full-condition test requirements for heavy-duty unmanned aerial vehicle engines.

2) High-speed, high-rigidity stable platform

HT300 cast iron plate + dedicated multi-stage shock absorption system effectively suppress vibration, stable long-term operation at 10,000 RPM with strong data consistency.

3) Intelligent simulation control for all operating conditions

Constant torque/constant power automatic switching, supporting steady-state, transient, and cyclic condition simulation, highly close to real flight loads.

4) High energy efficiency and multiple safety protections

Four-quadrant operation, energy feedback grid-connected; With multiple protections against overspeed, overload, overheat and overvoltage, the test process is safe and controllable.

5) Modular high scalability

Supports extended vibration monitoring, emission analysis, and environmental simulation modules to meet multi-scenario R&D and validation requirements.

4. SSCG60-3000/10000 60kW Medium and heavy-duty Unmanned Aerial Vehicle (UAV) Engine Test Dynamometer Bench System Application Areas

1) Performance and durability testing of engines for medium and heavy-duty logistics drones and forest fire prevention drones

2) Development and calibration of 60kW-class piston, turboshaft/turboprop engines

3) Verification of medium aviation power and light helicopter power systems

4) Testing of hybrid unmanned aerial vehicle energy management systems

5) Industrial high-speed motor and powertrain performance calibration

5. SSCG60-3000/10000 60kW Medium and heavy-duty Unmanned Aerial Vehicle (UAV) Engine Test Dynamometer Bench System Reference Standards

· GB/T 13396—2017 Dynamometers for Power Measurement;

· ‌JB/T 11481-2013 Electric Dynamometers;

· JJG 653-2003 Verification Regulation of Dynamometer Systems;

· GB/T 19022—2003 Measurement Management Systems — Requirements for Measurement Processes and Measuring Equipment;

· GB 5226.1—2019 Safety of Machinery — Electrical Equipment of Machines — Part 1: General Requirements;

· GB/T 2423 Environmental Testing of Electric and Electronic Products

6. UAV Engine Electric Dynamometer Test Bench Model List

Supports customized services: Speed range, torque range, test software functions, and special environment adaptation solutions can be customized according to requirements.

7. Delivery and After-Sales Support

Delivery services

1) Standard models: Ships within 90 days (including pre-testing before delivery to ensure quick installation upon arrival).

2) Customized models: Delivery in 90-120 days, covering international logistics and distribution to major regions worldwide including Europe, America, Southeast Asia, and the Middle East (sea / land transportation options available, including secure packaging and moisture-proof and rust-proof treatment).

3) Supporting services: We provide complete CE and ISO certification documents and certificates of origin, and a dedicated logistics specialist will follow up throughout the process to assist with customs clearance and ensure the safe and timely delivery of large equipment to the site.

After-sales support

1) Warranty commitment: 1-year warranty on core components (dynamometer, torque flange), lifetime maintenance; free troubleshooting and repair services during the warranty period, excluding damage caused by human error.

2) Technical support: 24/7 bilingual (English and Chinese) service, response time ≤ 4 hours

3) Installation, commissioning, and training services: The user is responsible for on-site basic installation. Seelong will dispatch two professional technicians to provide on-site guidance (including equipment positioning and calibration, and pipeline / line connection specifications); equipment commissioning will be handled entirely by us (including power-on testing, parameter calibration, and system linkage testing); 3 days of free professional operation training will be provided (covering equipment operation, parameter settings, daily maintenance, and troubleshooting) to ensure that operators are proficient in using large-scale equipment.
